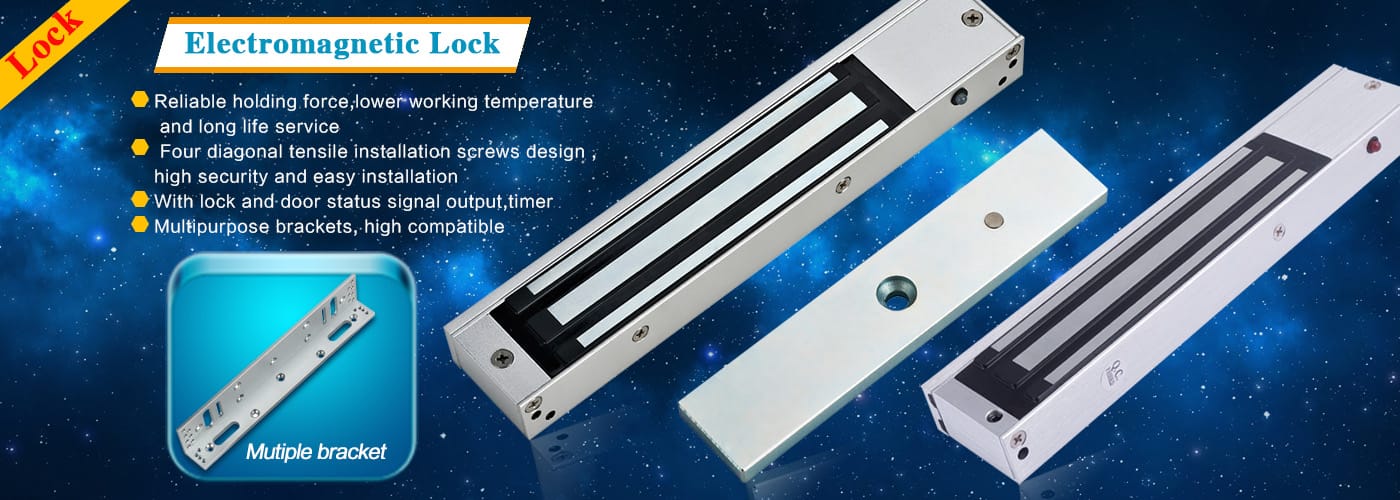

Electromagnetic Lock System 600Lbs/1200Lbs

Electromagnetic lock is a locking device that consists of an electromagnet and an armature plate.Typical single door electromagnetic locks are offered in both 600 lbs. (2669 N) and 1200 lbs

Description

  • Electromagnetic Lock (600/1200 lbs) with Indicator & Monitor Output
  • Fail Safe (Power to Lock) Electric Lock Suitable for Fire Exit
  • Delay Time (s): 0, 3, 5 and 9
  • Open Door Contact: Photo coupler contact
  • Lock Status sensor: N.C. & N.O. Output (1A@30V DC)
  • Indicator: Double colored LED light
  • Power Supply: DC 12V or DC 24V ± 5%
  • Operation Current: 450 mA @12V DC mA ± 5% and 230 mA @24V DC mA ± 5%
  • Application: Exit door, Out swing door and in Swing door
  • Holding forces: 600/1200 lbs
  • Demagnetizer Design: Instant demagnetizer when power is off
  • Operating Temperature: 40°C ± 5°C (Room Temperature 30°C)
  • The product does not include the bracket following the installation conditions of the door
